Tata 3D Weld Mesh is a high-performance fencing solution engineered for strength, stability, and adaptability. Manufactured from welded steel wires with thicknesses ranging from 1mm to 3mm, it delivers excellent load-bearing capacity and structural integrity across a wide range of applications.
With its galvanized coating and rigid welded construction, this mesh offers superior corrosion resistance and long-term durability, making it perfect for both indoor and outdoor environments. Whether you’re securing perimeters, reinforcing construction zones, or organizing outdoor spaces — Tata 3D Weld Mesh is the reliable choice.

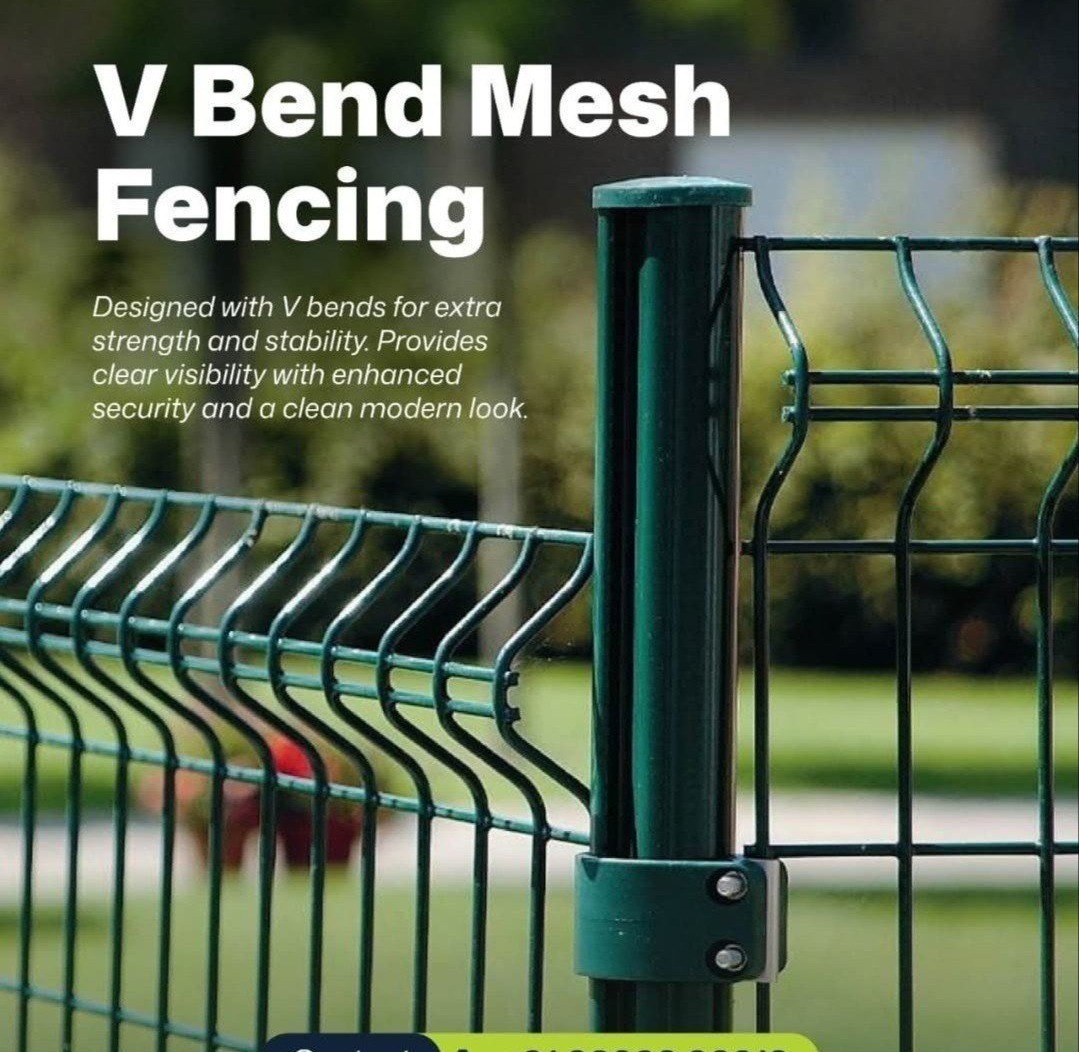

Key Specifications (Tata Wiron/3D Weldmesh)Mesh Size (Aperture): 50 mm (times ) 200 mm (standard).Wire Diameter: 4.0 mm (standard); 3mm-5mm for specialized, robust panels.Panel Width: 2500 mm (standard).Panel Height: Commonly available in 1200 mm, 1500 mm, 1800 mm, 2100 mm, 2400 mm.V-Bend (Reinforcement): Includes 2 to 4 vertical ribs/bends for increased structural strength.Material & Finish: Galvanized Iron (GI) wire with Polyester Powder Coating.Coating Thickness: Minimum 80 microns powder coating as per IS 13871, with at least 40 GSM zinc coating.Colors: Moss Green (RAL 6005), Anthracite Grey (RAL 6005)
